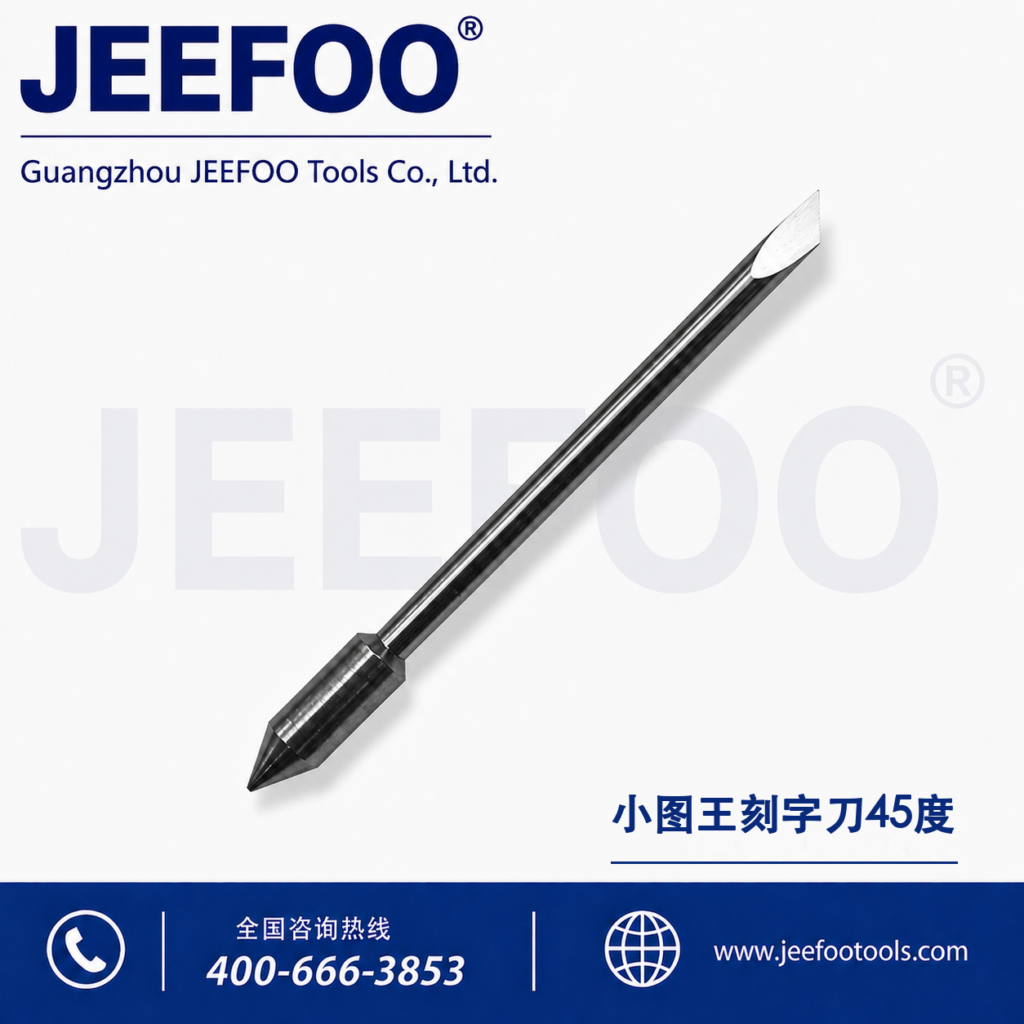

图王CB09U是本页对一款45°替换刻字刀片的型号称呼，面向广告车贴和薄膜切割场景。本页原始供应商参数标注其刀杆直径1.5 mm、总长23 mm、偏心距0.25 mm，并提供30°、45°和60°版本。由于这些尺寸与Graphtec官方CB09UB规格并不完全一致，订购前必须按实物刀座和设备型号核对，不能只凭“CB09U”名称判断兼容性。
图王CB09U页面标注参数
- 当前页面主推刀尖角度：45°
- 系列可选角度：30°、45°、60°
- 本页标注最大裁切物料厚度：0.25 mm
- 本页标注刀杆直径：1.5 mm
- 本页标注总长：23 mm
- 本页标注偏心距：0.25 mm
- 本页标注材料：89%–90%碳化钨、10%–11%钴硬质合金
- 本页标注硬度：91.5 HRA
- 本页标注抗断裂强度：4000–4200 N/mm²
- 本页标注包装：每盒5支
以上为页面供应商提供的产品数据，并非独立检测报告。尤其是材料比例、硬度和强度，应在采购合同、批次检测资料或样品验证后再用于质量判断。
与Graphtec官方CB09UB规格的区别
Graphtec America的官方刀片资料页将CB09UB描述为0.9 mm直径、45°的标准刀片，用于不超过0.25 mm的乙烯基和自粘膜；官方页面还列出了适配刀座与设备系列。本页替换刀片则标注1.5 mm刀杆和23 mm总长，因此它不应被自动视为原厂CB09UB的同尺寸替代品。请使用游标卡尺测量现有刀片和刀座，或向设备/刀座供应商确认。
选型前的兼容性检查
- 记录刻字机品牌、完整型号和刀座型号。
- 测量现有刀片的刀杆直径、总长、安装位置与刀尖伸出方向。
- 核对设备说明书支持的刀片系列和偏移参数。
- 确认材料厚度、表面膜层、图形细节和排废要求。
- 先购买或测试少量样品，再决定批量使用。
更多本店同类规格可查看小图王刻字刀系列。该内链用于比较站内产品，但仍应以每个页面列出的尺寸和实测结果为准。
安装、试切与参数调整
安装图王CB09U替换刀片前，清洁刀座并确认轴承转动顺畅。刀尖伸出量应只够切穿面材，尽量不深切底纸。先用包含小字、圆弧和尖角的测试图进行小面积试切，再逐步调整刀压、速度和偏移补偿。一次只改变一个参数并记录结果，有助于判断问题来自刀片、刀座、材料还是设置。
常见问题
图王CB09U是否等同于Graphtec原厂CB09UB？
不能这样认定。官方CB09UB资料标注0.9 mm直径，而本页供应商参数为1.5 mm刀杆；两者存在关键尺寸差异，应分别核对。
45°刀片能否切所有车贴材料？
不能。材料厚度、硬度、膜层、胶黏剂和图形尺寸都会影响效果。0.25 mm是本页与官方CB09UB资料中出现的适用厚度信息，不代表所有同厚度材料都能获得相同结果。
切不断、毛边或转角变形如何处理？
检查刀尖磨损、刀座轴承、刀片伸出量、材料固定、刀压、速度和偏移补偿。不要单纯提高刀压来补偿破损刀尖。
Graphtec-Type Replacement Blade: English Summary
The product called 图王CB09U on this page is a supplier-labelled replacement cutting blade, primarily presented in a 45-degree version for vinyl graphics and vehicle-sticker work. The page-supplied figures state a 1.5 mm shank diameter, 23 mm overall length, 0.25 mm offset and a maximum media thickness of 0.25 mm. It also lists 30, 45 and 60-degree variants, a tungsten-carbide/cobalt composition, 91.5 HRA hardness, flexural strength of 4000–4200 N/mm² and five blades per box. These values are seller-provided specifications and should not be treated as independent certification.
Important naming and dimension note
Graphtec America’s official blade page describes the genuine CB09UB as a standard 0.9 mm diameter, 45-degree blade for vinyl and self-adhesive film up to 0.25 mm thick. That official diameter differs from the 1.5 mm shank stated on this product page. Therefore, the shared “CB09U” wording does not prove identical dimensions, holder fit or origin. This page intentionally distinguishes the aftermarket listing from the official Graphtec product family.
How to confirm fit
Identify the full plotter model and the blade-holder part number. Measure the current blade shank and overall length with suitable tools, then compare the seating depth and supported offset settings. Check the official manual for the exact machine. If the holder is designed for a 0.9 mm CB09-series blade, do not install a 1.5 mm replacement without explicit confirmation from the holder supplier. A forced or loose fit can cause poor cutting and may damage the holder.
Test-cut workflow
After confirming dimensions, inspect the tip and clean the holder. Extend only enough blade to pass through the face film while leaving the liner largely intact. Use a small pattern with fine text, curves and corners. Begin with conservative force and speed, inspect weeding and corner closure, and adjust one setting at a time. Re-test whenever media, angle, blade or holder changes.
Troubleshooting and care
Dragging or torn film may indicate a chipped tip, excessive extension or a holder bearing problem. Incomplete cuts may result from low force, a worn tip, uneven media or incorrect extension. Distorted corners usually require checking speed and offset compensation. Protect spare blades from impact, adhesive residue and moisture, and replace damaged blades instead of compensating with excessive pressure.
