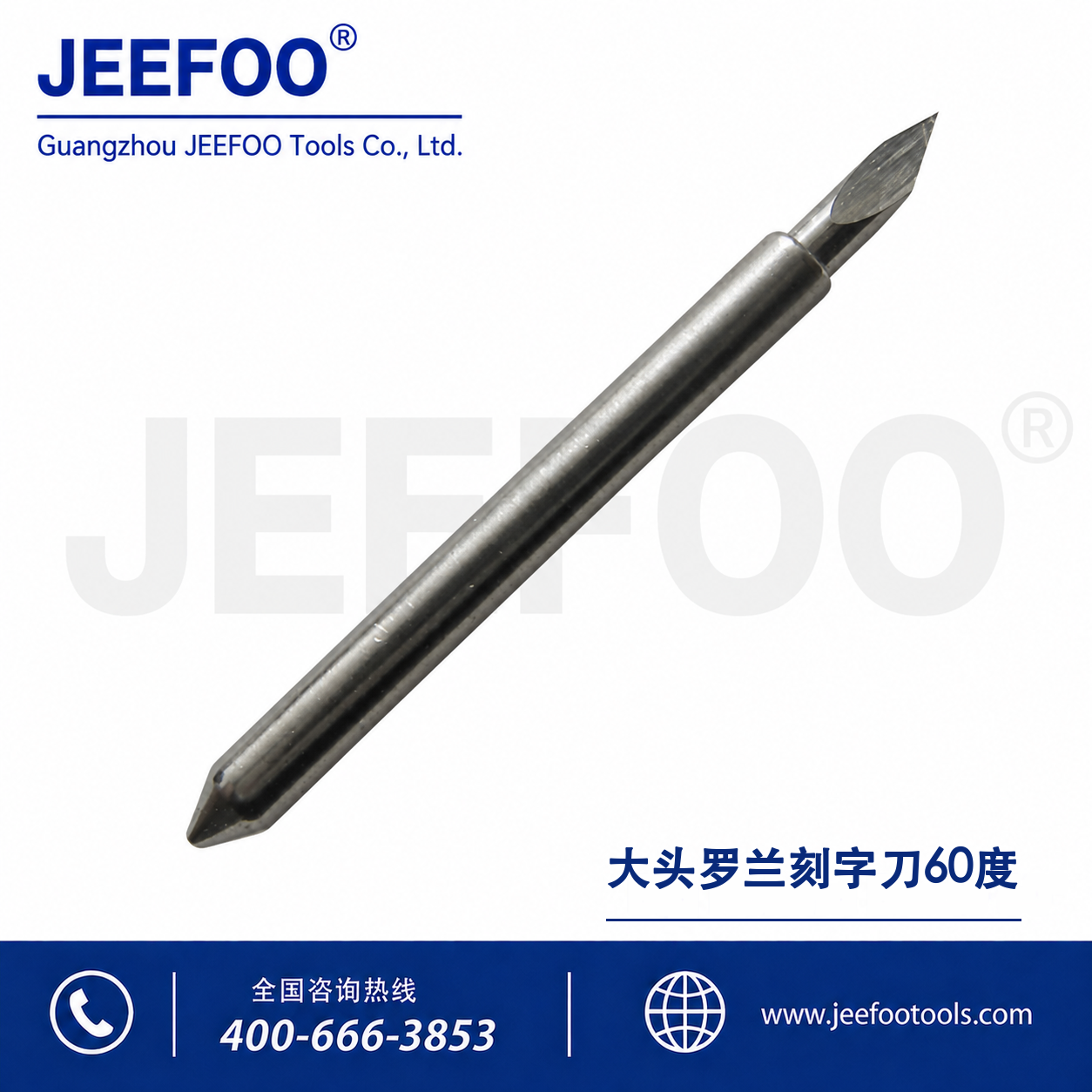

60 degree Roland cutting plotter blade is the seller’s description for this 60-degree replacement blade. The original listing states a 2 mm shank, 23 mm overall length, 0.25 mm offset, maximum media thickness of 0.25 mm and five blades per box. These are page-supplied values; compatibility must be confirmed against the exact cutter and holder.
Table of Contents
60 Degree Roland Cutting Plotter Blade Specifications
- Current blade angle: 60°
- Series angles listed: 30°, 45°, 60°
- Seller-stated maximum media thickness: 0.25 mm
- Shank diameter: 2 mm
- Overall length: 23 mm
- Listing offset: 0.25 mm
- Listing composition: 89–90% tungsten carbide, 10–11% cobalt
- Listing hardness: 91.5 HRA
- Listing flexural strength: 4000–4200 N/mm²
- Packaging: five blades per box
Composition, hardness and strength are supplier claims rather than independent certification. Request batch-specific test records or samples if these values affect purchasing.
Official Roland Reference and Product Identity
The Roland DGA official cutting accessories page lists genuine blades by part number, angle, offset and application. It includes several 60-degree blades with different offset values and intended materials. That source shows why angle alone is insufficient. It does not prove that this listing is an original Roland part or validate its 2 mm, 23 mm and material figures.
Compatibility Checklist
- Read the complete cutter model from the equipment label.
- Identify the blade-holder part number and locking structure.
- Measure the installed blade diameter, total length and seating depth.
- Check the machine manual for supported angle and offset values.
- Confirm media thickness, hardness, coating, adhesive and detail size.
- Request a dimensioned drawing or sample when information is missing.
Related replacement products are available in the Roland blade range. Similar names and appearance do not establish fit.
Installation and Test Cutting
Power off the machine, clean the holder and inspect the tip. Extend only enough blade to cut the face material while minimizing liner damage. Use a pattern with fine text, a square, a circle and sharp corners. Begin with conservative force and speed. Change only one setting at a time and record blade exposure, force, speed, offset, weeding result and liner condition.
Frequently Asked Questions
Is this an original Roland blade?
The listing does not provide an official Roland part number or evidence of origin. Treat it as an aftermarket replacement unless verifiable documentation is supplied.
Does a 60-degree blade always suit reflective film?
No universal claim is possible. Reflective films differ in construction and thickness. Confirm the machine, holder and media, then test.
Why do corners distort?
Possible causes include excessive speed, incorrect offset compensation, holder resistance, too much blade exposure or a damaged tip.
中文答案式摘要
本页60度罗兰刻字刀片为供应商标注的替换刀片，页面参数包括2 mm刀杆、23 mm总长、0.25 mm偏心距、最大材料厚度0.25 mm和每盒5支。页面还标注89%–90%碳化钨、10%–11%钴、91.5 HRA及4000–4200 N/mm²；这些属于供应商数据，并非独立认证。
与官方资料的边界
Roland DGA官方配件页按零件号、角度、偏移和用途区分刀片，并列有多种60°刀片。该资料说明不能仅凭角度判断兼容性，但不能证明本页产品为Roland原厂，也不能验证其材料参数。
选购与验收
订购前应核对设备型号、刀座编号、原刀片直径、总长、安装深度和手册支持的偏移值。收到货后记录批次、实测尺寸、包装数量和刀尖状态，用固定材料与测试图记录刀压、速度、伸出量、偏移、排废和底纸情况。
故障检查
出现拉膜、毛边、切不断或转角错位时，依次检查刀尖磨损、伸出量、刀座阻力、材料固定、刀压、速度和偏移补偿。不要用持续增加刀压来补偿损坏刀尖。
Batch Acceptance Record
Measure at least one sample from each batch and compare it with the confirmed holder. Test a second sample if dimensions vary. Keep the seller drawing and test settings with procurement records. This practical evidence does not certify carbide composition, but it helps establish repeatable holder fit and cutting behavior.
Verifiable Conclusion
This page can report its supplier-listed angle, dimensions, packaging and material figures and compare its terminology with an official Roland source. It cannot establish original-equipment identity, independent material certification or universal compatibility. Dimensional comparison and repeatable test cutting are decisive.
